SE5 1280

Uncooled Infrared Thermal Imaging Module

SE5 1280 is a high-resolution (1280×1024) uncooled thermal camera with a self-developed infrared LY300, stable supply, high reliability, and a ceramic package detector for enhanced durability and performance. It features a compact size, low power consumption and long standby time. SE5 1280 offers multiple image modes including edge outlining mode, allowing users to choose the best one for different industry applications. SE5 1280 applies to multiple scenarios, e.g. security, handheld devices, night vision,etc.

Inquire Now

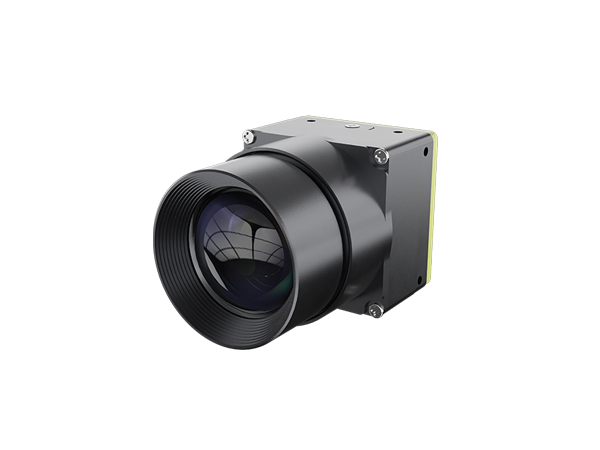

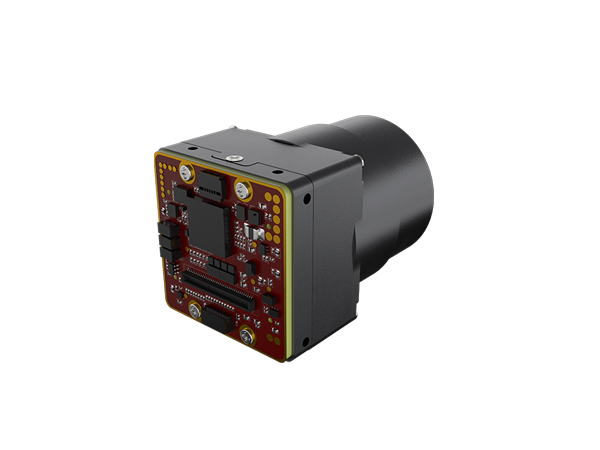

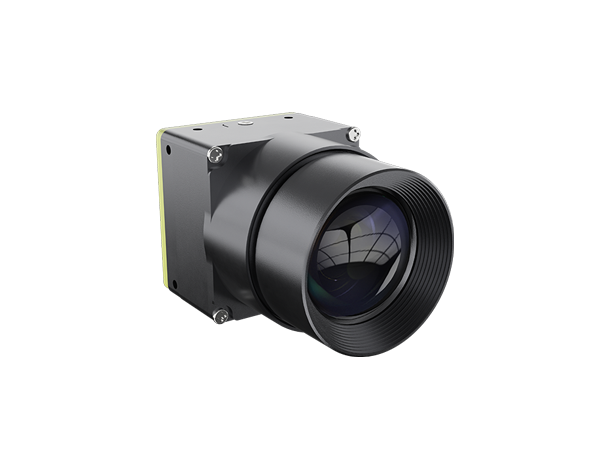

SE5 1280 Uncooled Infrared Thermal Imaging Module

Inquire Now

Product Highlights

High Reliability for Demanding Applications

Featuring a self-developed infrared LY300 platform and a ceramic package detector, the module delivers stable performance and high reliability for a wide range of industrial and outdoor applications
High-Quality Image for Clear Thermal Imaging

Integrated with image processing functions including non-uniformity correction, digital filtering, noise reduction, and detail enhancement, the module provides clear and high-quality thermal images for different application scenarios
Rich Functions for Versatile Applications

Supporting multiple imaging and measurement functions, including electronic zoom, pseudocolor display, crosshair, image mirroring, and edge outlining mode, the module offers flexible operation for diverse thermal imaging applications

Product Specifications

Product Model SE5 1280
Speciﬁcations
Detector Type	Vanadium oxide uncooled infrared focal plane detector
Spectral Range	8~14μm
Pixel Pitch	12μm
NETD	≤40mK@25℃,F#1.0,25Hz
Detector Frame Rate	50Hz(imaging), 30Hz(temperature measurement)
Image Adjustment
Brightness/Contrast Adjustment	0~100 levels selectable
Electronic Zoom	1.0~8.0× continuous zoom (step 0.1×)
Polarity	Black hot/white hot
Pseudocolor	Supported
Crosshair	Display/hide/move
Image Processing	Non-uniformity correction/digital ﬁltering noise reduction/detail enhancement
Nonuniformity Correction	Shutter correction/shutterless algorithm correction
Image Mirroring	Left/right, up/down, diagonal
Focusing Method	Athermalized prime/manual focus lens
Temperature Measurement
Range	High image quality: -20℃~ +150℃; wide range: 50℃~ +600℃
Temperature Measurement Accuracy (Typical value)	Target temperature: -20℃ ~ +150℃, accuracy: ±2℃ or ±2% of the reading Target temperature: 50℃ ~ +600℃, accuracy: ±5℃ or ±3% of the reading
Temperature Measurement Tools	Analysis tools: spot, line, area
Information Row	Information bar: displays temperature and other measurement data
Isothermal Pseudocolor	Supported
Electrical Parameters
Power Supply Voltage (Typical)	5V
Typical Power Consumption @25℃	＜1.3W
Analog Video	/
Digital Video	DVP/BT1120/ MIPI/USB3.0
Serial Communication Interface	UART/I2C
Physical Characteristics (Excluding lens and ﬂange)
Dimensions (W×L×H) mm	29mm×29mm×15.7mm
Weight(g)	<26g
Optional Lenses
Lens (mm)	19mm/35mm/55mm
Environmental Adaptability
Operating Case Temperature	Imaging (-40℃ ~+80℃), temperature measurement (-20℃ ~+60℃)
Storage Case Temperature	-50℃~+85℃
Humidity	5% ~95%, non-condensing
Vibration	6.06g, random vibration, all axes
Shock	1000g@0.3ms optical axis direction
