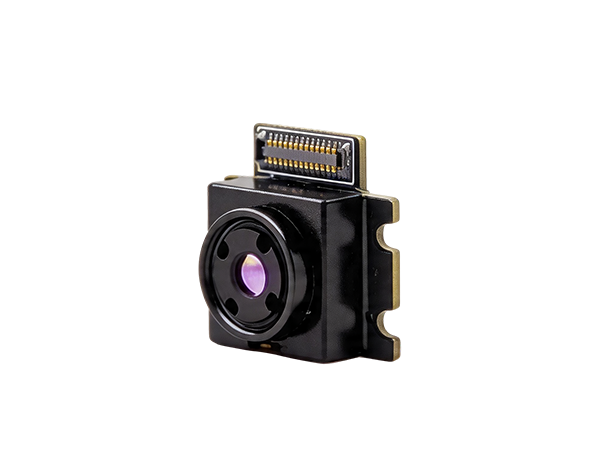

Tiny1-C is a long-wave infrared (LWIR, 8–14 μm) micro thermal imaging module that converts the thermal radiation emitted by objects into image and temperature data. The module features a compact form factor, light weight, and low power consumption, suitable for security monitoring, temperature measurement tools, PDAs, and smart Internet of things (IoT).
1.256 × 192 @ 12 μm WLP high-performance VOx uncooled microbolometer
2.25 Hz high frame rate
3.Excellent lens optics combined with high-resolution detector deliver superior imaging performance
1.Designed for the consumer-grade thermal imaging market
2.Built-in shutter; ultra-compact form factor of 13 mm × 13 mm × 8 mm for seamless integration
1.Proprietary in-house developed infrared ISP chip featuring low power consumption and high performance, minimizing development complexity for users
2.Supports full-frame temperature data output
| Specifications | Tiny1-C |
| Infrared Specifications | |
| Detector Type | VOx Uncooled Infrared Focal Plane Detector |
| Spectral Range | 8 μm to 14 μm |
| Resolution | 256×192/160×120 |
| Pixel Pitch | 12 μm |
| NETD | <50 mK @ 25°C, F#1.0, 25 Hz |
| Thermal Time Constant | <10 ms |
| Detector Frame Rate | ≤25 Hz |
| Non-Uniformity Correction | Automatic shutter correction |
| Image Output | 10-bit / 14-bit |
| Focusing Method | Athermic fixed-focus lens |
| Temperature Measurement | |
| Temperature Measurement Range | Industrial temperature measurement: -15ºC to 150ºC (high gain) 50ºC to 550ºC (low gain) Biological temperature measurement: 30ºC to 45ºC |
| Precision | Industrial temperature measurement: ± 2ºC or ± 2% of the reading Biological temperature measurement: ± 0.5ºC |
| Electrical | |
| Input Voltage | 3.3 V, 5 V |
| Image Data Interface | SPI/DVP |
| Control Interface | I2C |
| Normal Temperature Power Consumption | Normal operation: 240 mW (typical value) Shutter active: 600 mW (typical value) |
| Mechanical | |
| Dimensions (W×L×H) | 13 mm × 13 mm × 8 mm |
| Weight | 3.7 g (2.0 mm lens); 3.9 g (3.2 mm lens); 4.1 g (4.3 mm lens) |
| Environmental Adaptability | |
| Operating Case Temperature | Operating Temperature: Imaging: -40°C to 80°C; Industrial Temperature Measurement: -10°C to |
| Storage Case Temperature | 75°C; Biological Temperature Measurement: 10°C to 50°C-45°C to 85°C |
| Shock | 25 g, 11 ms, half-sine waveform, 3 axes |
