Horus640-EN

Horus640-EN
Automotive-Grade Thermal Imaging Module

The Horus640-EN is an uncooled long-wave thermal imaging automotive-grade module featuring a cost-effective, compact, high-protection, and low-power-consumption design. Built upon our proprietary automotive-grade long-wave infrared (LWIR) thermal imaging MEMS detector and ASIC-ISP image processing chip, the module passively detects infrared radiation emitted by objects to deliver clear imagery of pedestrians, animals, vehicles, and other targets, unaffected by lighting or weather conditions. Whether in nighttime, low-light, or glare-prone environments, or under adverse weather such as snow, fog, haze, smoke, or dust, its infrared thermal imaging technology provides drivers with accurate and timely visual information.

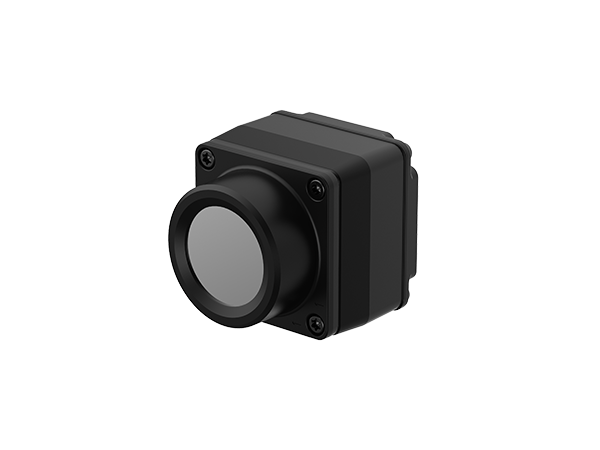

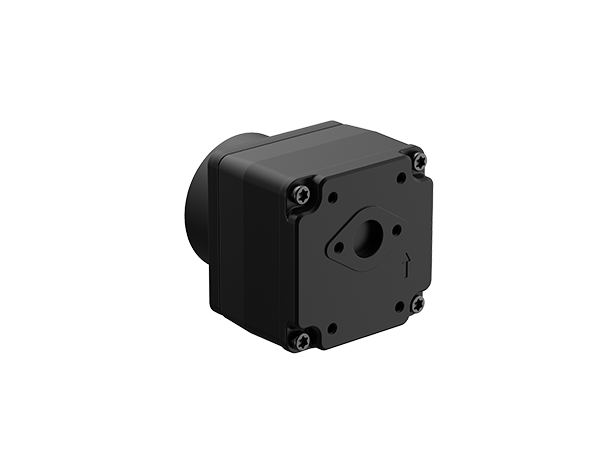

Horus640-EN Automotive-Grade Thermal Imaging Module
Product Highlights
  • Automotive-Grade Integrated Core for High Cost-Effectiveness

    1.Integrates an 8 μm automotive-grade (AEC-Q100 Grade 2) certified detector

    2.Incorporates the second-generation in-house developed automotive-grade (AEC-Q100 Grade 2) certified ASIC-ISP chip LY300

  • Advanced Imaging Algorithms for High Clarity and Smoothness

    1.Features a motion-scene-adaptive shutter-less algorithm that ensures continuous, freeze-free image output during vehicle operation

    2.Employs high-quality image processing algorithms for enhanced detail

  • Professional Functionality & Rugged Protection

    1.Supports external synchronization with user-configurable trigger frequency

    2.Provides IP69K protection for the front cover and IP67 protection for the complete module

Product Specifications
NumberSpecificationsHorus640-E
Voltage9 V to 16 V, 12 V Nominal
Power ConsumptionMax. 6 W (with Defrosting)
Frame Rate30 fps
Field of View48±1.5°×38±1.5°
Pixel Size8 μm
LensStandard 6.1 mm/F#0.95
Sensor TypeVanadium oxide uncooled microbolometer
Shutter Lifetime1 Million Cycles
Video InterfaceFAKRA Connector, Power over Coax (PoC)
10 Video ProtocolGMSL2/HSMT
11 Communication ProtocolI2C
12 Image FormatYUV422, 8-bit (UYVY)
13 IP GradeIP69K&IP67K
14 Operating Case Temperature−40 C to 85 C
15 Storage Case Temperature−40°C to 105°C
16 Weight (g)<80 g
17 Detector NETD≤40 mK @ 25°C, F#1.0, 25 Hz
18 Frame SynchronizationSupported, Latency < 3 ms
19 Defrosting FunctionSupported
20 Dimensions (mm)32.3 × 32.3 × 44.0 mm (excluding bracket)
21 Mounting BracketReplaceable
22 Image Output FormatSingle-Channel MIPI Output
23 Localization RateHigh
