Aftermarket Retrofits

CV301W

CV301W

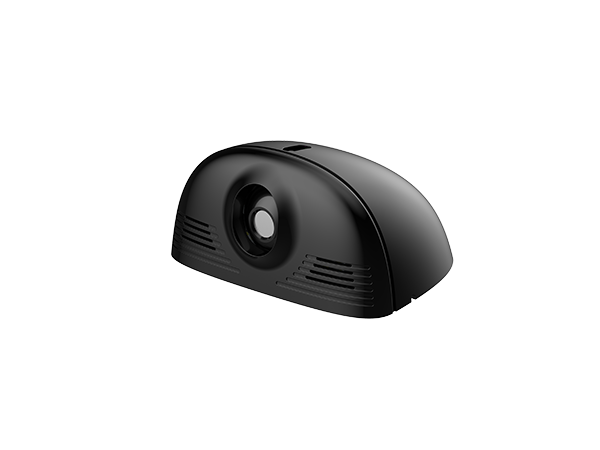

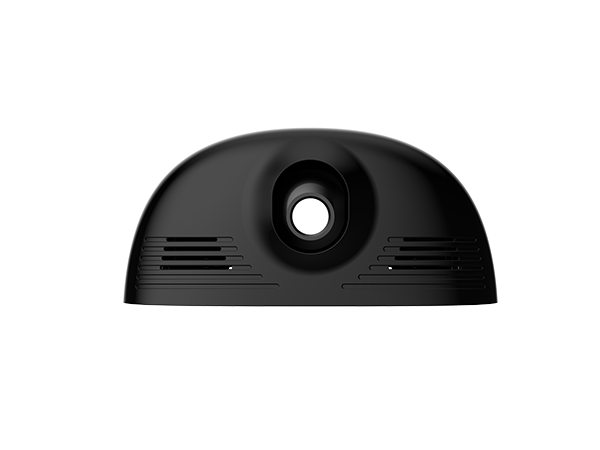

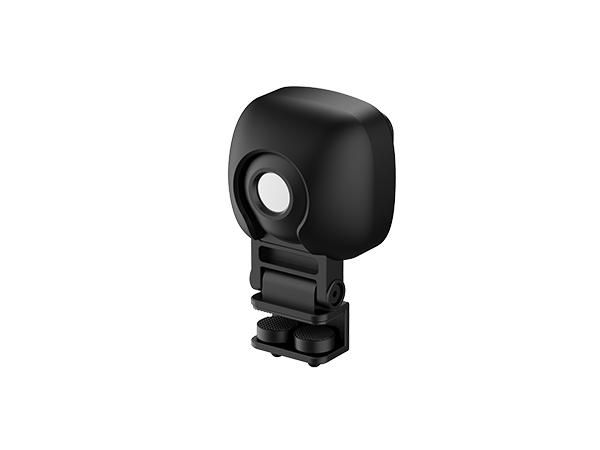

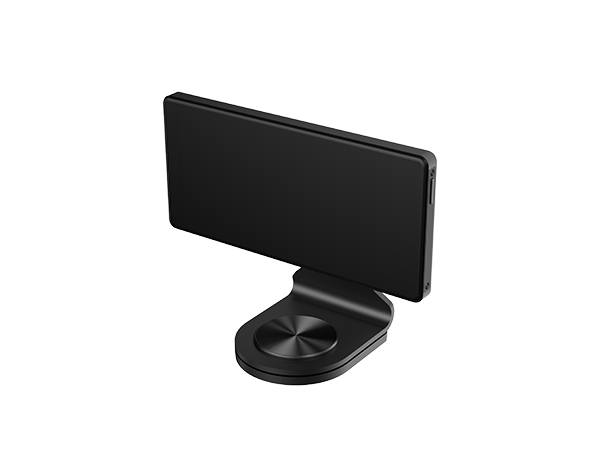

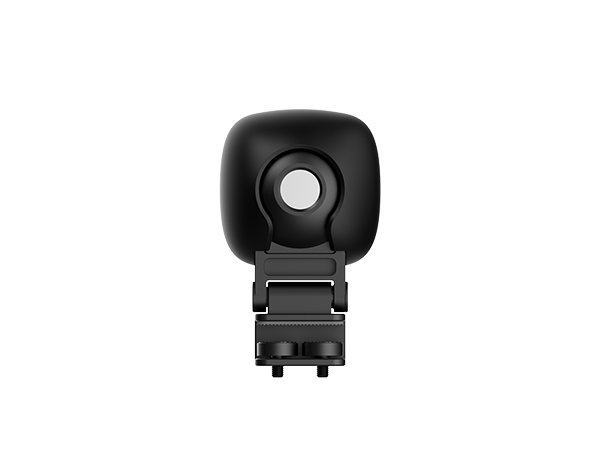

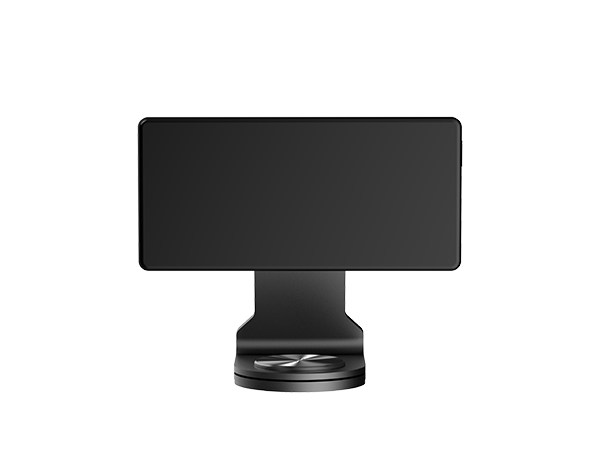

The CV301W is an AI-powered smart product designed for the aftermarket and retrofit sector of passenger vehicles. It incorporates a long-wave infrared (LWIR) detector with a pixel pitch of 12 μm and an array size of 384 × 288, delivering superior image quality with enhanced clarity and fine detail. It effectively addresses critical driving-safety challenges posed by low-light conditions, glare, and adverse weather such as rain, snow, fog, or haze. Built-in AI algorithms can quickly and accurately detect pedestrians and vehicles, ensuring all-weather protection for driver safety. The product supports Wi-Fi data transmission, facilitating simple installation and ensuring compatibility across a wide range of vehicle models.

CV301W
Product Highlights
  • Wireless Connection

    1.Simplified installation without the need for cabling through cabin

    2.Installation by yourself in 5–10 mins

  • AI-Powered Recognition

    Automatic identification of pedestrians, vehicles, and animals

  • 50.1° Wide Field of View (FOV)

    Broader coverage with superior image clarity

Product Specifications
SpecificationsCV301W
Resolution384×288
Pixel Size12 μm
NETD<50 mK
Frame Rate30 Hz
Field of View50.1°×37.3°
Other ParametersDisplay Size5.99 in.
Display MaterialLCD
Display Resolution1440×720
External Power SupplyScreen: USB-C 5V; External Camera: Fuse Box
Camera IP GradeIP69K
Camera Operating Temperature-20~60℃
Camera Storage Temperature-40~85℃
